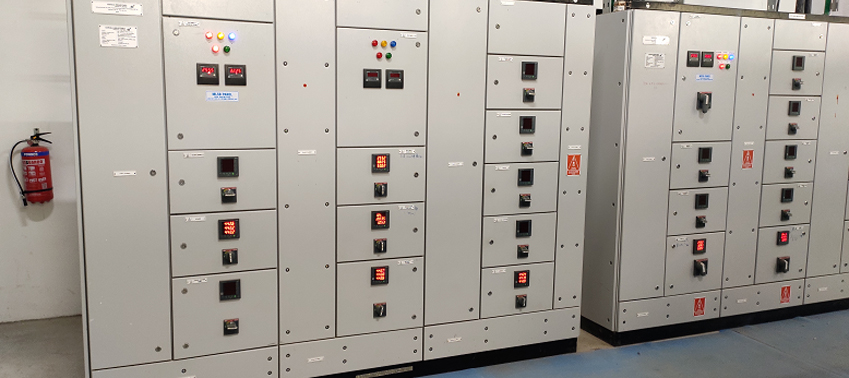

Sub Main Distribution Boards (SMDB) up to 800A
Sub-main distribution boards are type-tested and ideally suited for secondary distribution due to the robust and standardized design, ensuring a safe and reliable sub-power distribution.
- Available in Form 2, 3 and 4 segregation with 3 Phase boards ranging from 4 ways up to 24 ways and has a option for isolator and MCCB incomers (Both Auto & Non-Auto) and to add on DIN rail extension boxes to enable mounting of other modular devices.
- Fully encapsulated tinned copper Busbar up to 800A and has one piece Busbar to avoid joint hotspots.
- Fault withstand 35KA for 1 second up to 250A and fault withstand 50KA for 1 second from 400A to 800A.
- Floor or wall-mounted with surface and flush-mounting options and IP ratings available up to IP65, upon request with adequate space for cabling.
- Provision to add on metering and cable extension boxes and finishing as per RAL 7032.
Other finishes available upon request.
- Panel in compliance with latest international standards and local regulation.
